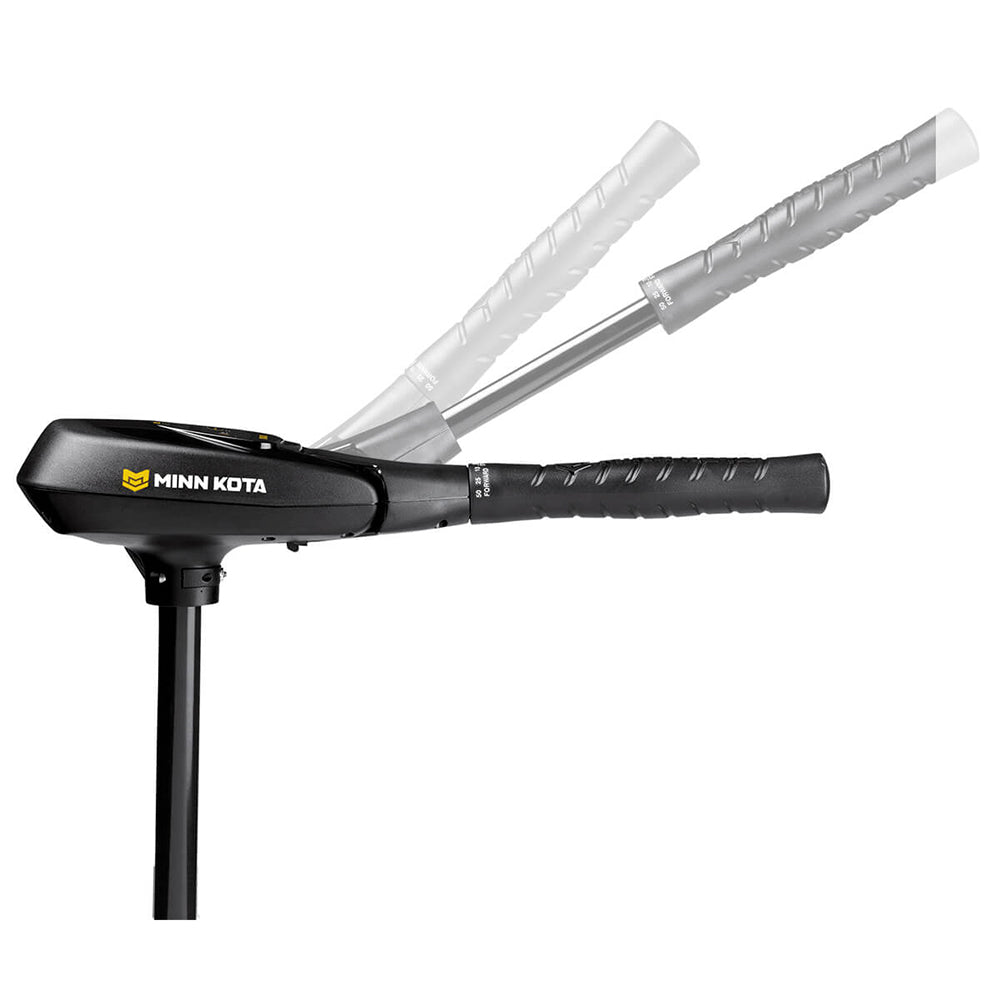

Minn Kota Edge 55 - Hand Control - 12V-55lb-52"

The Minn Kota Edge 55 is a hand-control bow-mount trolling motor engineered for smaller boats that see serious use. Its extruded, anodized aluminum mount keeps weight low without sacrificing rigidity, while the impact-resistant composite head and Latch & Door bracket give you a secure, rattle-free setup from launch to takeout. The indestructible composite shaft — guaranteed for life — handles impacts that would sideline lesser motors, and the lower unit runs cool and quiet to protect long-term reliability.

Features:

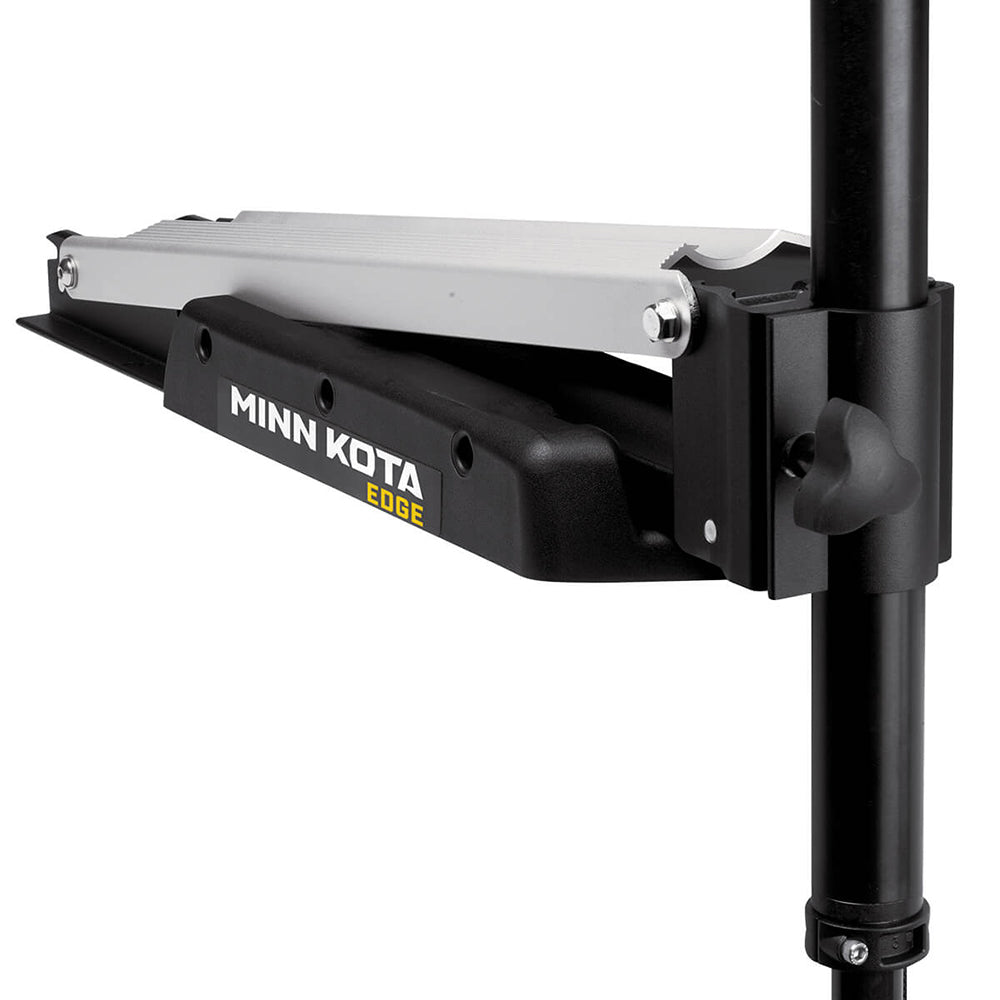

• Latch & Door Bracket: Locks the motor firmly in the stowed position and releases easily when the day is done.
• Heel-Toe / Cable-Steer Foot Pedal: Ultra-responsive heel/toe foot pedal with speed control and both momentary and constant on/off switching; constructed from high-impact composite for lasting durability.
• 5-Speed Settings: Five distinct speed settings let you fine-tune your trolling pace for changing conditions.

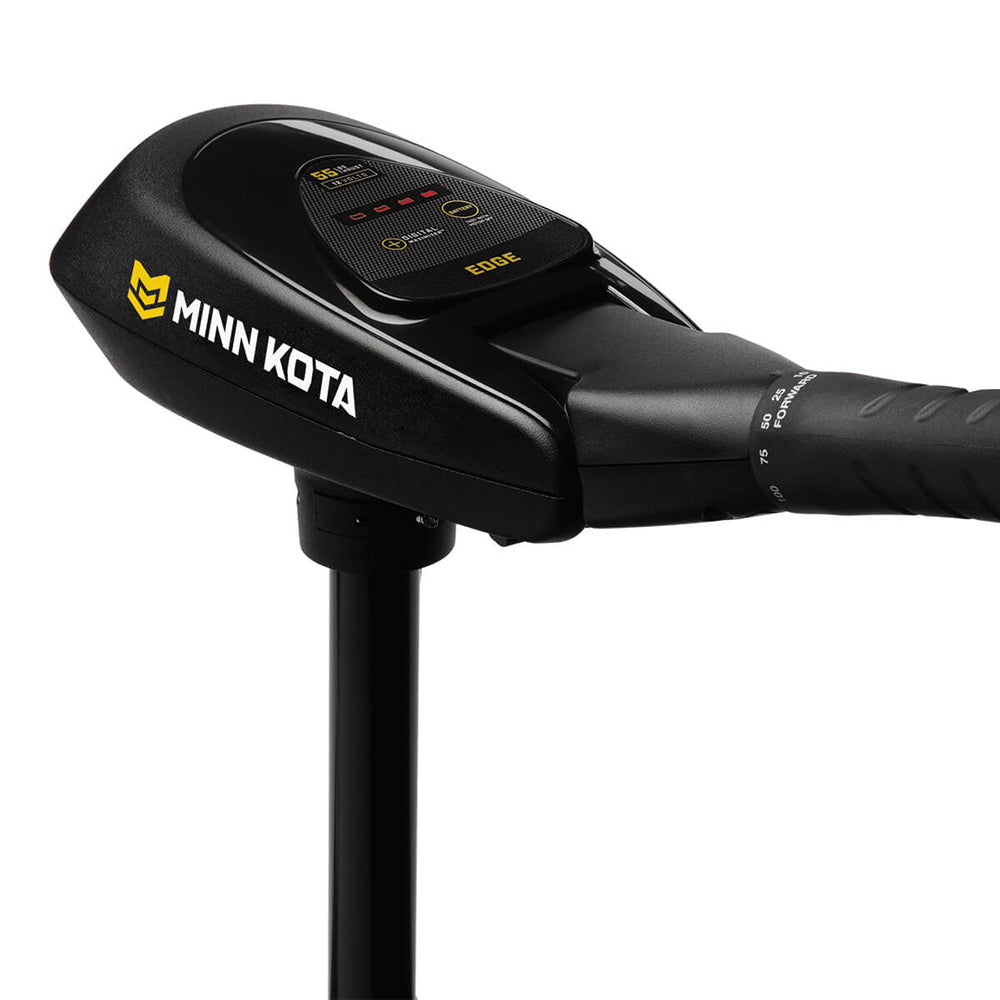

• Directional Indicator: Built into the top of the motor head for a quick, at-a-glance read on prop direction.
• Power Prop (MKP-32): Sized for 3-1/4" motor diameters and optimized to drive through heavy vegetation; includes prop pin, nut, and washer.
• Indestructible Composite Shaft — Guaranteed for Life: A Minn Kota-exclusive shaft construction backed by a lifetime guarantee against breakage.
• Cool, Quiet Lower Unit: Thermal management keeps the lower unit running cool to extend motor lifespan while minimizing noise on the water.

In the Box:

• Edge 55 lb. 52" hand-control motor
• MKP-32 Power Prop
• Hold-down strap
• Mounting hardware

Specifications:

• Control: Hand
• Voltage: 12V
• Maximum Thrust: 55 lbs.
• Shaft Length: 52"
• Speed Control: 5-Speed
• Maximum Amp Draw: 50 A
• Prop: Power Prop (MKP-32)

Resources:

• Owner's Manual (PDF)
